BassXpress Gen II
TAKING IT TO ANOTHER LEVEL
Priced from $29,490 + GST Alloy trailer from $8,837 + GST
The new generation BassXpress 548 based on the new Z hull, a stepped strake hull for even better hole shop and sunning stability. Self draining decking with waterproof storage compartments with rubber compression seals. A 100L insulated live well that is reticulated and can be divided. using the waterflow divider panel. A full length rod locker on the portside and centre locker now doubles as general storage and upper full length rod locker (able to hold rods exceeding 2.4m). or the entire centre compartment is available for rod storing even more rods And now even more leg room for the driver featuring a 15 foot rest and room for a hotfoot. An extended storage compartment on the starboard side ahead of the driver facilitates general gear stored and is long enough for the anchor light pole and can also accommodate the deep cycle battery.
As usual 3.0mm 5052 alu-alloy throughout with welded longitudinal stringers and box section gussets for absolute rigidity and hull strength. Combined with expanding flotation foam throughout all available underfloor cavities and around the live well and rear storage compartments makes the boat not only unsinkable (level flotation rating) but also very quiet,, feeling just like a fibreglass hull on the water. No slap-slap-slap from the waves when at rest, nice and quiet. How about 3-layer EVA decking. Now standard, with EVA and carpet combination optionally available. All storage compartments feature waterproof compressions hatches, are re-enforced & painted on the underside with non-glare finish and compartments are carpet lined to protect your valuable gear. And all forward storage compartments are lockable with keyed-alike generous hatch locks to keep your gear safe, as are the two rear storage compartments.
All forward locker features auto On/Off LED strip lighting, space for plenty of rods with butt supports and bungee straps. Battery storage just ahead of the driver's console in the starboard compartment. Push n Lock connectors for reliable electric motor connection and pre-wired back to the deep cycle battery compartment. Step and rear storage boxes can be used as ice chests, if so desired and are plumbed for drainage. A generous steering console can accommodate analogue instruments as well as up to 12” MFD.
Whether you’re fishing the ABT, club comps or just having fun catching bream, murray cod or whatever else you fish for, this is just an amazing boat with plenty of room for 304 people. You'll appreciate the superb handling at all speeds and the stability at rest that makes it a sheer joy to fish out of. And you don't need huge horsepower to make this hull hike, starting with a 75hp, or go all the way with a 150 powerhouse. Get ready to be impressed!
Length: 5.48M
Beam: 2.35M
Weight: 500 kg
Load weight: 1200kg
Thickness: 3.0mm
Alu grade: 5052
Transom height: 510mm
Motor shaft: Long
HP rating: 75-150
Fuel capacity: 90L
Occupants: 3-4
Flotation rating: Level

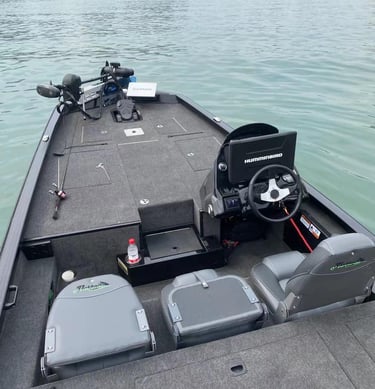

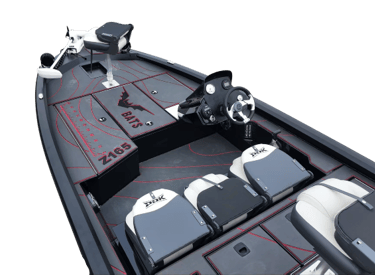

Gen 2.0 model shown
BX-Z 548
Standard features
Fibreglass console
Mechanical steering with carbon fibre look steering wheel
High quality 5-layer baked enamel paint finish
Single or 2-tone paint options
6mm thick section for electric trolling motor mounting location
Trolling motor foot pedal tray with cover plate and tool & drink holders
Lockable storage hatches x 7 (including rod locker/s with compression seals
100L dividable live well, fully plumbed, reticulated
4 x folding 316 stainless steel cleats

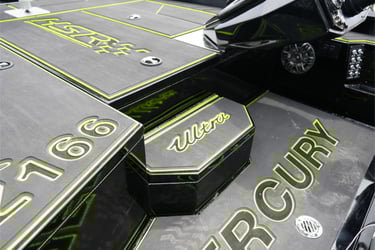

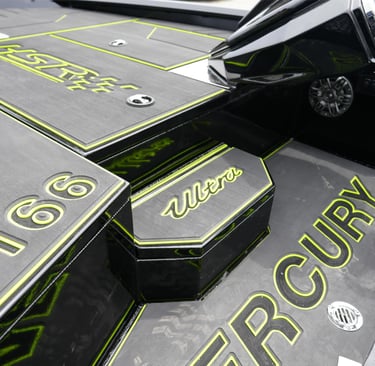

3-layer EVA over aluminium decking
EVA pads to bow deck, cockpit, driver's foot well, arm rests, step & transom wings
Flush mount LED navigation lights under gunnel
Insert style LED anchor light
Under gunnel colour selectable LED lighting
LED lighting to front lockers
LED cockpit lighting
Front 60A & 20A Push N Locker connector socket for electric trolling motor
Front control panel -2 x 10A Push N Lock connector sockets, outboard motor trim, anchor and navigation light switches, USB ports

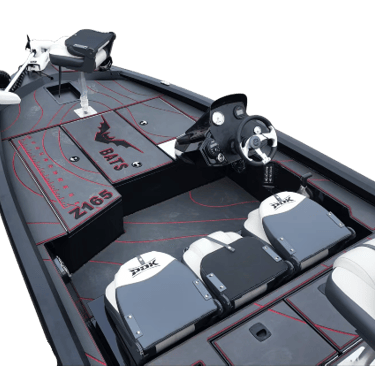

3 x folding seats + 2 x casting seats
Option - 2 x bucket style seats with centre storage box with non-slip EVA top
Under seat storage
Options
Passenger side console c/w glove box and grab rail

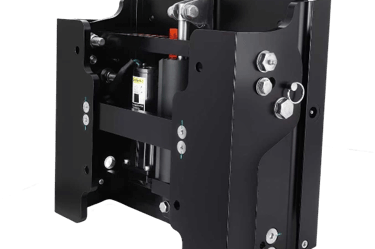

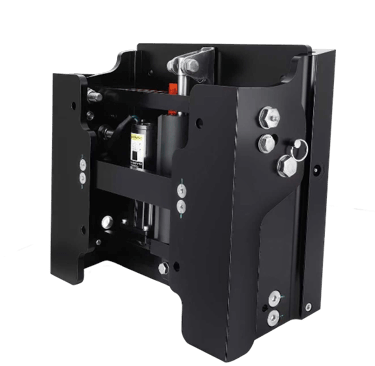

Heysea Hydra-Lift 6" or 8" hydraulic jacking plate with trim gauge
Hydraulic steering with tilting helm
Sliding tackle tray c/w 10 x 3700 Plano-style tackle boxes
Hot foot
Sounder bracket - 1, 2 or 3 screens
Deluxe metallic paint
Custom paint finish
Folding 316 stainless steel swim ladder
Outboard motor

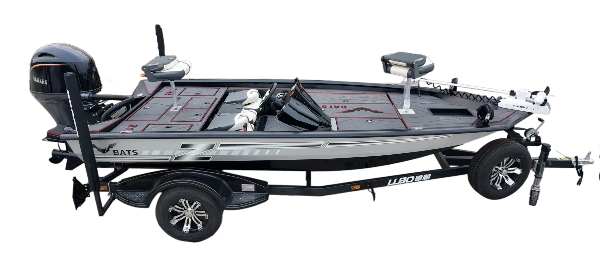

Aluminium boat trailer
Boat cover
Step storage can be used as ice box
70L under-seat aluminium fuel tank
Seaflo auto bilge pump and reticulating live well pump
Flush waterproof push-button switch panel
2 x USB sockets/voltage meter
3 x cup holders
5 x rod straps
2 x transom tie-downs
Transducer mounting bracket
Bow eyelet
cont...
Hull colour options
Seat colour options
Light scheme
Dark scheme
Arctic White
Pearl White
Midnight Black
Arktik Grau Metallic
Fire Engine Red
Blue Metallic
Luxe Yellow Metallic
If we have a PVC colour that is a very close match to the hull colour, we will use it as highlight patches on the seats
We offer custom colour selection on custom ordered hulls, extra cost is $440. Large metallic flakes to any selected colour, add $250.
